XU1 Bodypack UHF Radio Microphone System
Pay in full
£0.00
£159.00

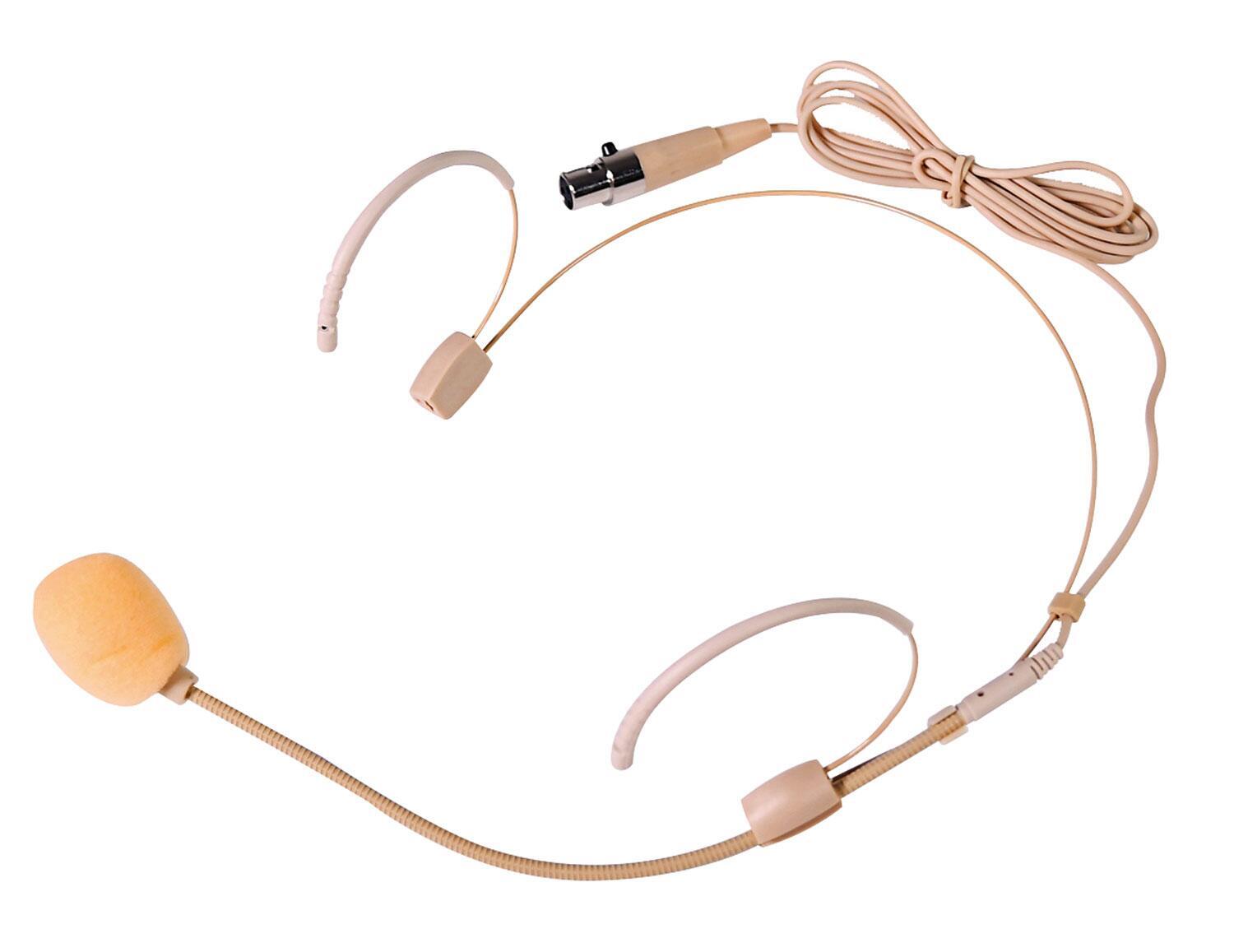

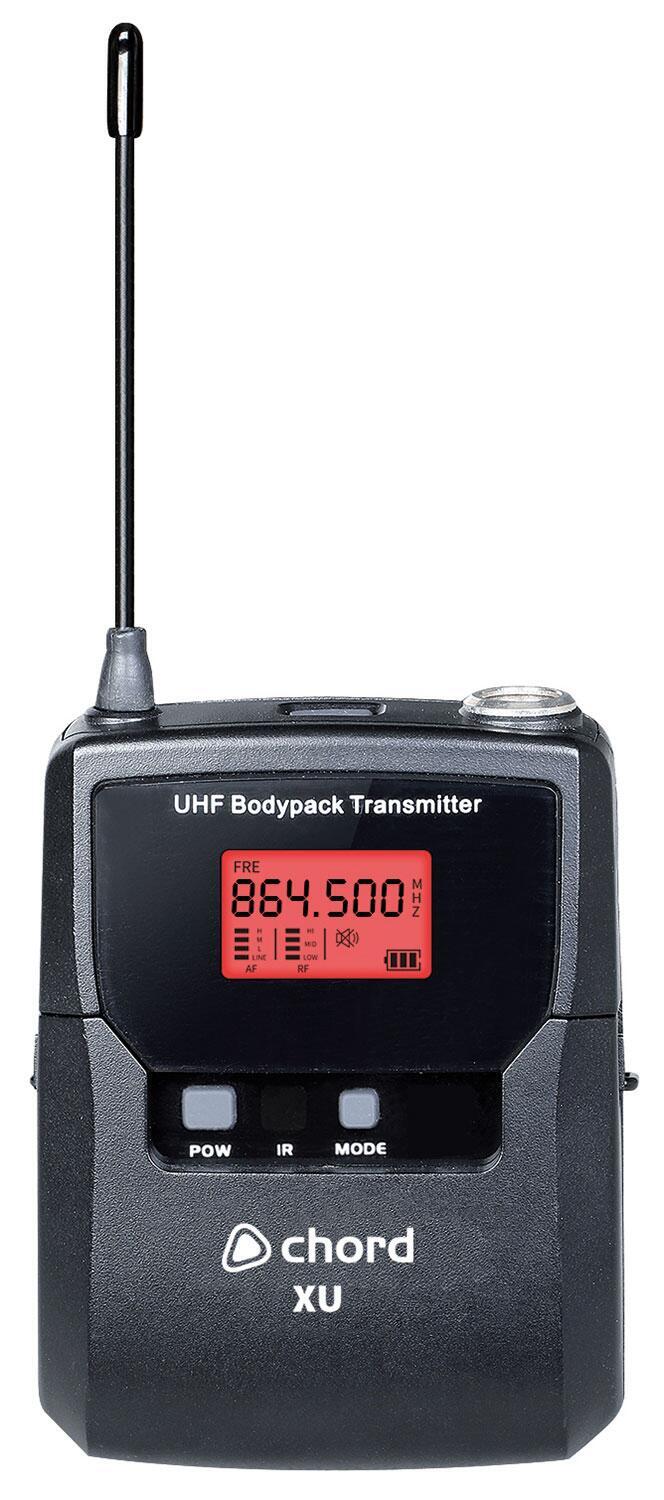

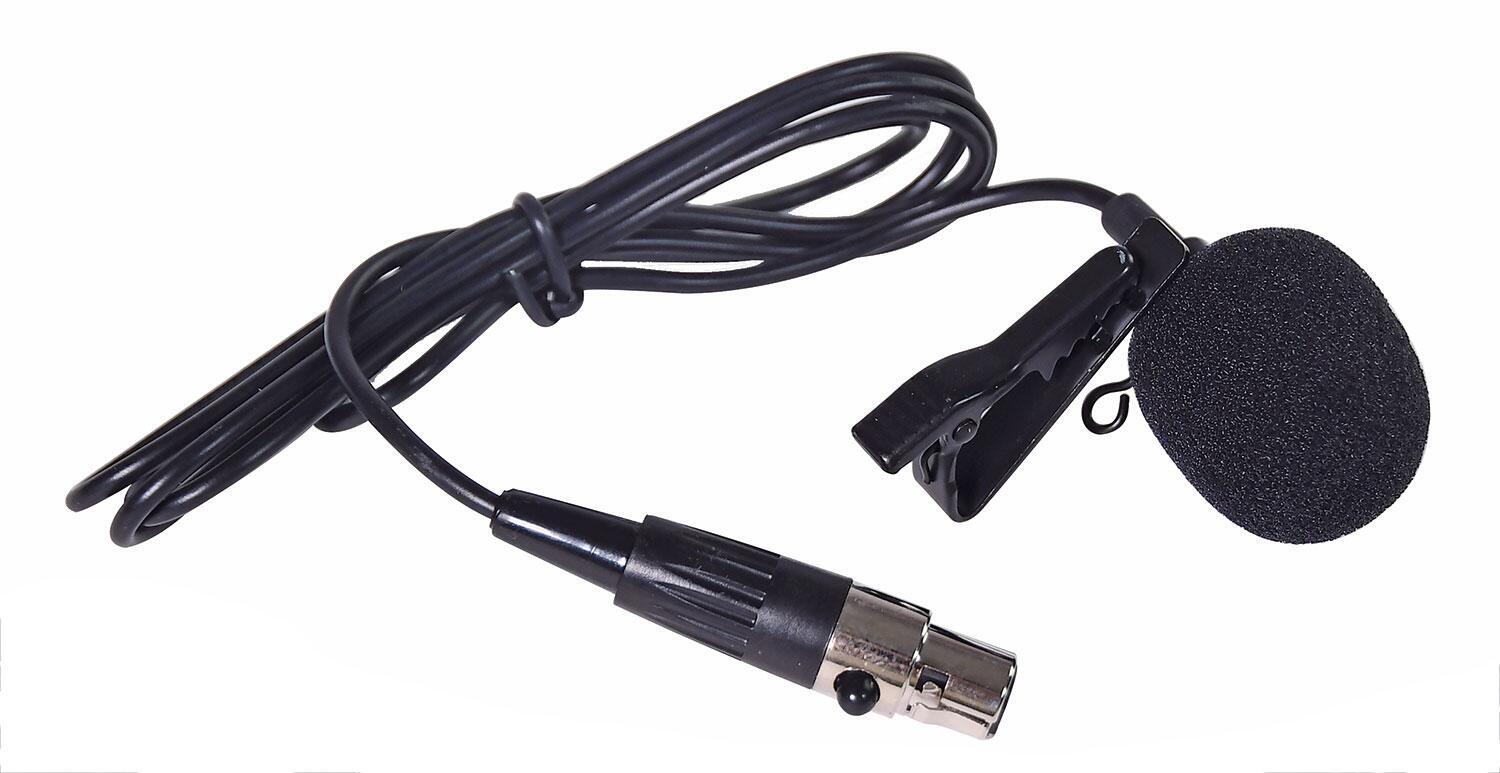

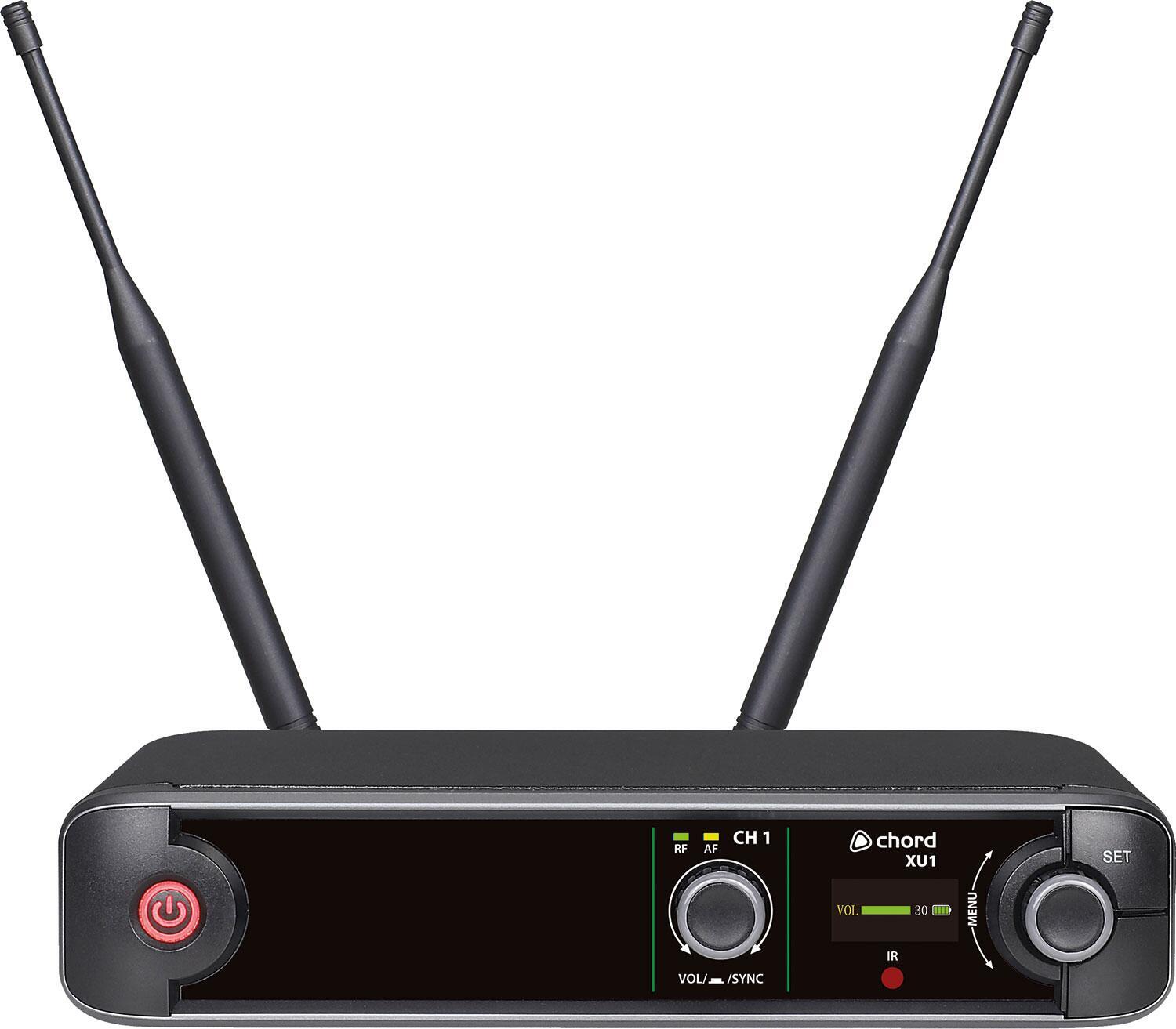

Chord XU1 Bodypack UHF Microphone System offers pro-level features in a compact receiver with a premium microphone transmitter. Supplied as a half-width 1U rack receiver and 1 bodypack transmitter with both a neckband and lavalier mic. The receiver is a true diversity type with dual antennas and internal distribution for minimising dropouts. The front panel has a volume control and indicator LEDs alongside a colour TFT display with level indication and settings for channel frequency and colour. The transmitter also has its own LCD display for frequency and battery status, with a backlight that can be set to one of 6 colours for identification. Carrier frequencies are arranged in 10 groups with carriers in both the UK/EU license-free UHF and PMSE licensed duplex gap UHF bands. Each set is supplied with hardware for mounting into a 1U rack space with extension cables to enable front mounting of the antennas. For a wireless microphone system with straightforward operation and intuitive features, the XU series delivers freedom and reliable operation to vocalists, presenters and instructors in a compact and convenient package.
- True diversity antennas with internal distro for reliable reception
- 10 groups of 9 selectable UHF carrier frequencies
- Compact half-width rack receiver
- Selectable backlight colours for each channel
- Colour TFT display for settings menu
- 1, 2 or 4 x XLR outputs + 1 x 6.3mm mix output
- Settings sync I.R. from receiver to transmitters
Batteries: 2 x AA per transmitter
Carrier frequencies: 823-832 / 863-865MHz
Wireless range: Up to 60m

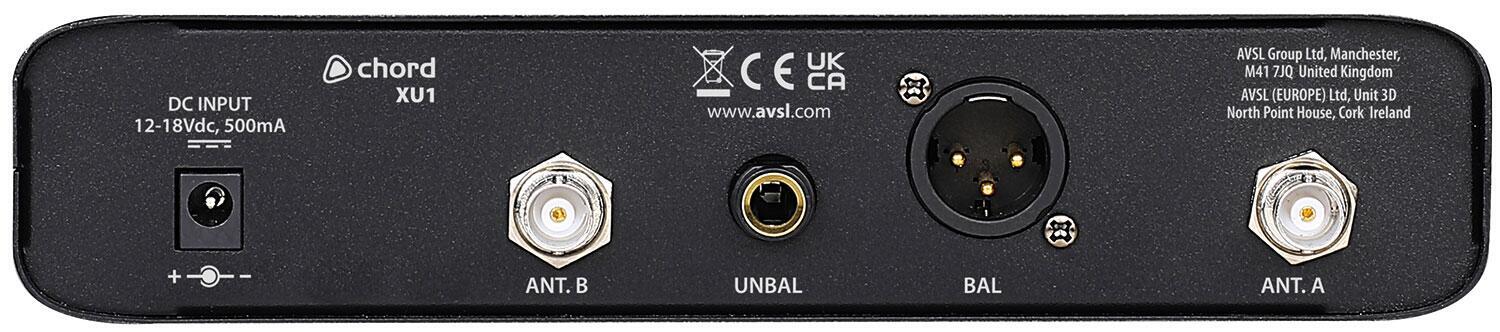

Antenna connection: 2 x BNC
Dimensions : receiver: 205 x 205 x 44mm
Weight : receiver: 755g
