RCF

ART 715-A MK5 Active Two-Way Speaker

RCF

ART 715-A MK5 Active Two-Way Speaker

Pay in full

£0.00
£569.00

QTY

You’ll earn 0 reward points with this purchase.

ART 715-A MK5 is a unique product in its category. The professional compression driver with custom designed dome and high power voice coil offers unique vocal clarity and constant sound coverage. The 15” woofer offers an extremely linear response and a precise low frequency control. The transducers are produced using the most advanced assembly technologies. The two channel amplifier delivers 1400 watts and is controlled by a DSP that takes care of crossover, equalization, phase control, soft limiting and transducers protection.

  • 130 dB Max SPL
  • Two Channel Amplifier of 1400 WATT
  • Innovative DSP Processing
  • 1" Compression Driver, 1.75" v.c.
  • 15" Woofer
  • 90°x60°, wide dispersion constant directivity horn
  • FiRPHASE Technology
  • XBOOST Low Frequency Enhancer

Finance payment examples

Finance is optional. You can pay the full product price above or choose an available Snap Finance option at checkout, subject to status and eligibility.

Click the banner above to see the 0% Snap Finance option.

To apply, add the item to your basket and choose Snap Finance at checkout.

Click the Klarna message above to see the available payment options.

To use Klarna, add the item to your basket and choose Klarna at checkout.

Click the banner above to see the longer-term Snap Finance option.

To apply, add the item to your basket and choose Snap Finance at checkout.

NEW PERSPECTIVE ON LINEARITY

RCF speakers are designed using a proprietary and advanced FiR filtering technology, conceived to deliver transparent sound, absolute clarity and perfect stereo images to the listener. The special FiRPHASE filters allow the speaker to achieve coherent distribution of sound for all listeners without phase distortions whilst ensuring minimum latencies to the system.

Andrea Capra describes how RCF's FiR filtering technology improves the sound of their speakers.


SUPERIOR TRANSDUCERS

The woofers and compression drivers are precision built taking advantage of RCF’s technologies and a wealth of professional knowledge and experience dedicated to achieving extremely high standards.

POWERFUL CLASS D AMPLIFIERS

RCF's Class-D power amplifier technology packs huge performance operating with high efficiency into a lightweight solution. ART 7 amplifiers deliver ultra-fast attack, realistic transient response and impressive audio performance. The amplifier features a solid mechanical aluminium structure which not only stabilises the amplifier during transportation but also helps the fan-less heat dissipation. All the ART 7 amplifiers present SMPS power supply section in order to produce maximum output and minimum transportation weight.

EXPERIENCE THE DEPTH OF SOUND

XBoost unlocks the profound low frequencies concealed within ART speakers. With a simple activation from the speaker's rear panel, immerse yourself in a rich tapestry of bass that pounds with exceptional clarity and control. Whether you're seeking subtle background music or an enriched sonic experience for your mix, XBoost delivers an astonishing perception of deepened bass, ensuring that every note retains its pristine essence and keeping the woofer excursion under control.

BRING ART WITH YOU

The RCF ART 7 Series has earned the prestigious international Red Dot Design Award in the Product Design category. Receiving the renowned Red Dot acts as proof of the excellent design achievements of professionals and up-and-coming talent alike, thus symbolising a seal of quality.

Acoustical specifications

  • FREQUENCY RESPONSE: 45 Hz ÷ 20000 Hz
  • MAX SPL @ 1M: 130 dB
  • HORIZONTAL COVERAGE ANGLE: 90°
  • VERTICAL COVERAGE ANGLE: 60°


Transducers

  • COMPRESSION DRIVER: 1.0'', 1.75'' v.c
  • WOOFER: 15'', 2.5'' v.c

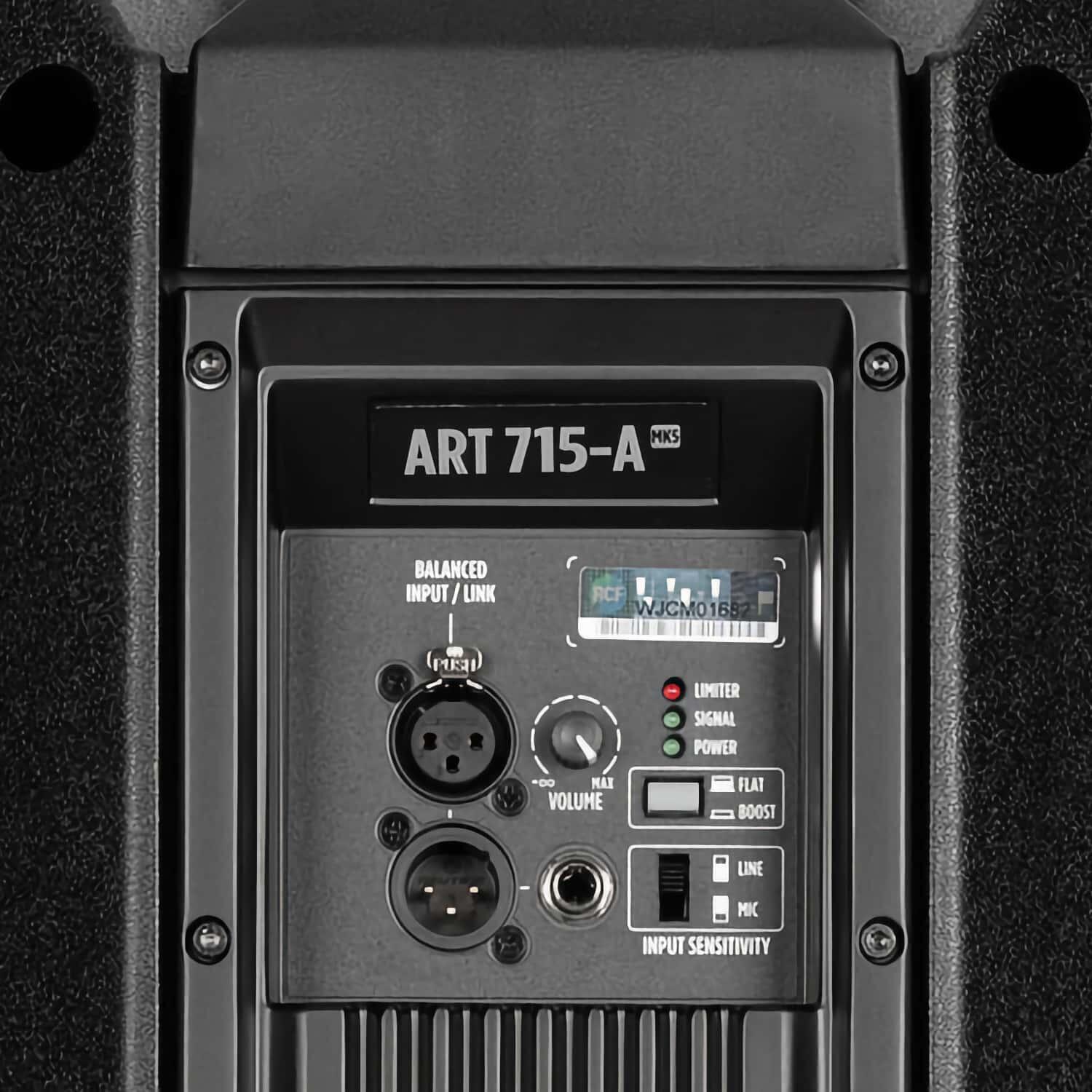

Input/Output section

  • INPUT SIGNAL: bal/unbal
  • INPUT CONNECTORS: XLR, Jack
  • OUTPUT CONNECTORS: XLR
  • INPUT SENSITIVITY: -2 dBu/+4 dBu
  • MIC. INPUT SENSITIVITY: -32 dBu


Processor section

  • CROSSOVER FREQUENCIES: 1600 Hz
  • PROTECTIONS: Thermal, RMS
  • LIMITER: Soft Limiter
  • CONTROLS: Volume, Boost, Mic/Line


Power section

  • TOTAL POWER: 1400 W Peak, 700 W RMS
  • HIGH FREQUENCIES: 400 W Peak, 200 W RMS
  • LOW FREQUENCIES: 1000 W Peak, 500 W RMS
  • COOLING: Convection
  • CONNECTIONS: VDE


Standard compliance

  • CE MARKING: Yes


Physical specifications

  • CABINET/CASE MATERIAL: PP Composite
  • HARDWARE: 2 x M10
  • HANDLES: 1 Top, 2 Side
  • POLE MOUNT/CAP: Yes
  • GRILLE: Steel
  • COLOR: Black


Size

  • HEIGHT: 708 mm / 27.87 inches
  • WIDTH: 437 mm / 17.2 inches
  • DEPTH: 389 mm / 15.31 inches
  • WEIGHT: 19.6 kg / 43.21 lbs


Shipping information

  • PACKAGE HEIGHT: 750 mm / 29.53 inches
  • PACKAGE WIDTH: 500 mm / 19.69 inches
  • PACKAGE DEPTH: 440 mm / 17.32 inches
  • PACKAGE WEIGHT: 23 kg / 50.71 lbs
